Bevel Gear Assembly For ISUZU And Ford And JMC

Brand :FORND

Product origin :NANCHANG

Delivery time :1WEEK

Supply capacity :10000PCS/MONTH

1)OEM&OES are all acceptable.
2)Application capable for lots of Vehicle models.
3)Performance serivce is available.

Bevel Gear Assembly For ISUZU And Ford And JMC Description:

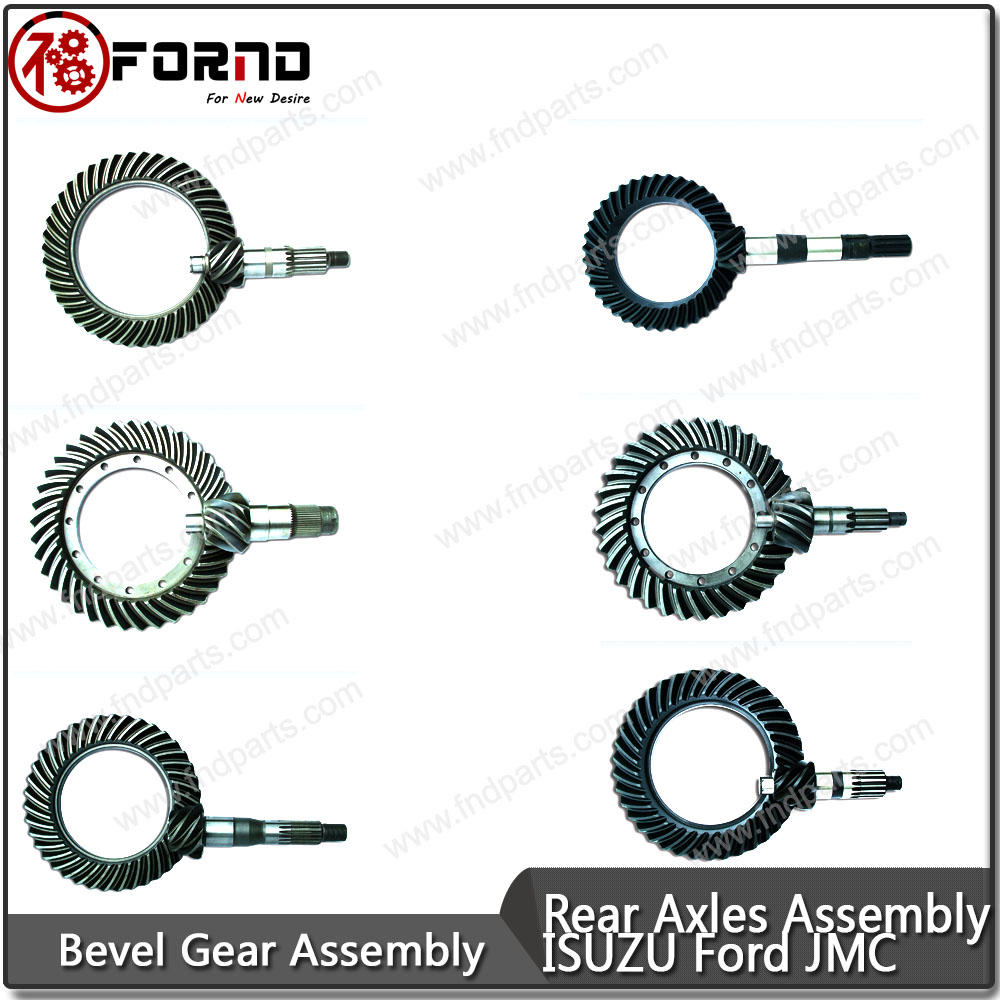

Bevel Gear Assembly For ISUZU and Ford and JMC.jpg

Application Vehicles	Part number	Ratio	Modulus	Installation dimension	setover	Outline dimension
ISUZU truck NHR Serial	S1-2402021-02N	7/39	6.283	123	-35	￠74*231.5
	S1-2402021-03N			54.74		￠244*34.22
	11C1-B	8/41	5.976	123	-35	￠79*231
	11CF2-B			54.74		￠244*32.5
	10C3	11/43	5.698	123	-35	￠98*231.5
	10C4			71.5		￠244*42.13
	3C1（III）	7/41	5.976	123	-35	￠71*231.5
	3CF3（III）			54.74		￠244*35.4
Transit Commercial vehicle(SUV)	2402101TS01	9/39	6.283	123	-35	￠91.5*231
	2403117TS02			59.5		￠244*33
	11C1-A	9/41	5.976	123	-35	￠87*231
	11CF2-A			59.5		￠244*34.5
	OUB4-C1	10/41	6	123	-35	￠95.86*231
	OUB4-CF2			59.5		￠246.97*32.1
	D120-2402-011A	8/39	6.283	123	-35	￠83*231
	D120-2403-111A			54.74		￠244*31.36
ISUZU truck NKR Serial	8C4(III)	7/39	7.765	148	-25.4	￠82*225
	8C22（III）			61		￠292*38.79
	8C4（I）	8/39	7.5	148	-25.4	￠88*225
	8C22（I）			63		￠292*38.14
	9C4	7/41	7.196	148	-25.4	￠77*225
	9C22			61		￠292*40
	8C4	7/43	6.861	148	-25.4	￠74*225
	8C22			61		￠292*41
	9C22(I)	8/43	6.861	148	-25.4	￠82*225
	9C5(I)			61		￠292*38
JMC PICKUP	7C1	10/41	4.741	98.34	-31.8	￠77.8*205.5
	7C5			56.08		￠194*32.8
	7C1(I)	9/41	4.741	98.34	-31.8	￠70.5*205.5
	7C5(I)			56.08		￠194*34.6
